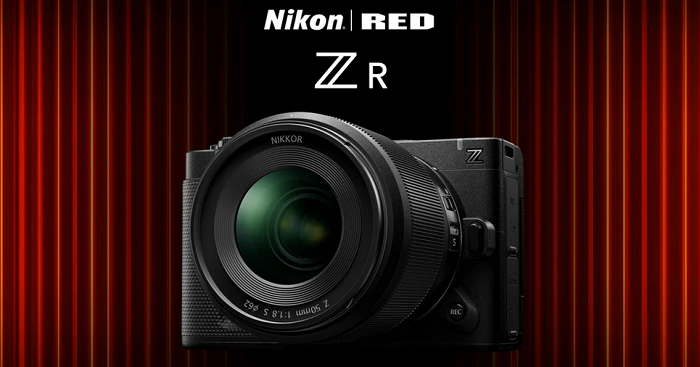

Product description for Nikon ZR Body

The ZR is aimed at filmmakers and creators who are often on the move: It is the lightest all-in-one cinema camera on the market. 1 Whether short clips or the next indie film - look forward to cinematic shots without a lot of accessories.

6K full-frame sensor. Up to 6K/60p recordings directly in the camera: from cinematic 24p to extreme slow motion with 240p. From detailed 6K resolution to razor-sharp, compact 1080p resolution. Flexible frame rates and resolutions make any project possible.

Proven RED-colour science: An exclusive R3D NE codec from RED enables immense freedom in post-production, as ZR video material (R3D NE) and R3D video material recorded by RED cameras can be processed in the same post-production workflow
.

4-inch, tilt and rotatable touchscreen monitor: The large, 1000 nits bright monitor covers the DCI-P3 color space and has a generous 16:10 display format. Monitor 3D LUT display (Look Up Table) for RED Gamma (Log3G10): By using monitor LUTs, the monitor display shows a precise preview of the result after post-production.

Dual-base ISO of 800/6400: when shooting in Log3G10. The sensor's wide dynamic range of 15+ f-stops is maintained at both base ISO settings.

In-camera 32-bit float audio recording: Enables free audio recording and level adjustment in post-production without clipping.

Cinematic video modes and custom RED Picture Controls: 4 creative video modes and 9 custom RED Picture Control configurations provide a cinematic look + feel straight from the camera.

Fast, intelligent autofocus: Fast, accurate, reliable and customizable autofocus ensures razor-sharp images.
Integrated image stabilization: The image stabilizer with sensor shift from Nikon ensures blur-free shots in five axes.

Lightweight and robust: The ZR weighs approx. 540 g (camera only) and is fully sealed against weather influences. Expandable: With the extensive range of accessories from Nikon and partner brands, the equipment can be expanded at any time.

Technical data: Type: Mirrorless camera
Bayonet: Nikon Z bayonet
Image sensor: CMOS sensor, 35.9 mm × 23.9 mm (FX format)
Effective resolution: 24.5 million pixels
Two memory card slots CFexpress (Type B), XQD, microSD (Secure Digital), UHSI compliant microSDHC, microSDXC
Primary video functions: Internal RAW recording (R3D NE), LUT display aid (LUTs can be displayed in real time during recording; up to 30p), RED-color sience (Log3G10), basic ISO sensitivity control, imaging recipes supported by RED,
shutter angle control, video in portrait mode
ISO sensitivity: ISO 100 to 51 200 (increment: 1/3 or 1 EV). Shooting mode [M]: ISO 100 to 51 200; sensitivity can be increased by approx. 0.3, 0.7, 1 or 2 steps (up to ISO 204 800 equivalent) above ISO 51 200. Automatic ISO sensitivity
control available; maximum ISO sensitivity can be set (except in R3D NE). When the file type for
movie recording is set to R3D NE 12-bit (R3D), either a low base ISO sensitivity (ISO 800)
or a high base ISO sensitivity (ISO 6400) can be selected. When the sound mode is set to HLG: ISO 400
to 51 200. If the sound mode is set to N-Log: ISO 800 to 51 200; sensitivity can be reduced by approx. 0.3, 0.7, 1, 1.3, 1.7
or 2 stops below ISO 800.
Shutter: electronic shutter 1/16000 to 30 s,-900 s (M mode), flash sync speed of 1/60 s, long time exposure (B), long time exposure (T)
Continuous shooting frame rate: up to 120 fps. Slow continuous shooting: approx. 1 to 7 fps. Continuous shooting fast: approx. 16 fps. Continuous shooting fast (extended): approx. 20 fps. High-speed continuous shooting + (C15): approx. 15 fps. High-speed continuous shooting + (C30): approx. 30 fps. High-speed continuous shooting + (C60): approx. 60 fps. High-speed continuous shooting + (C120): approx. 120 fps. Maximum frame rate measured under test conditions specified by Nikon.
Frame rate: 5.4K/60p, 50p, 30p, 25p, 24p; 4K UHD / 120p, 100p, 60p, 50p, 30p, 25p, 24p; FHD/240p, 200p, 120p, 100p, 60p, 50p, 30p, 25p, 24p. (RAW) 6K/60p, 50p, 30p, 25p, 24p; 4K (4032×2268)/60p, 50p, 30p, 25p, 24p; 4K (3984×2240)/120p, 100p, 60p, 50p, 30p, 25p, 24p
6K/60p,50p and 4K/120p,100p are only available in N-RAW and R3D NE.
Video file format: NEV, R3D, MOV, MP4 (H.264/AVC (8bit))
Video compression: R3D NE (12 bit), N-RAW (12 bit), Apple ProRes RAW HQ (12 bit),
Apple ProRes 422 HQ (10 bit), H.265/HEVC (8 bit/10 bit), H.264/AVC (8 bit)
Gamma curve: Log3G10, N-Log, SDR, HLG
Dynamic range: 15+ f-stops (Log3G10)
Audio recording device: Integrated microphone or external microphone can be used; external audio devices can be used via the line input, audio directivity (OZO Audio*), audio input sensitivity adjustable; functions for attenuation, transmission range and wind noise filter.
Audio recording format: Linear PCM (48 kHz, 24 bit/32 bit float, recorded in NEV, R3D or MOV video file formats) or AAC (48 kHz, 16 bit, for videos recorded in MP4 format)
Recording/playback time: Up to approx. 125 minutes**
Exposure metering: Matrix metering, centre-weighted or light-weighted metering
Autofocus system: Hybrid AF (phase and contrast detection) with focus assistant
Image stabilization: Sensor-Shift-VR (image stabilizer with moving image sensor; camera shake compensation in 5 axes
Monitor: 4-inch diagonal display. Tilt and rotatable TFT LCD touch monitor with approx. 3,070,000 pixels and 160° viewing angle, approx. 100% field coverage, color balance and 15-stage manual brightness control
External interface: Type C SuperSpeed USB connection. Type D HDMI connection. Separate stereo input/output mini jack socket (3.5 mm diameter; plug-in power and line input supported). Accessory shoe. Accessory port; built-in (can be used with MC-DC3 remote cable release and other accessories).
Wireless connectivity: WI-FI®/ BLUETOOTH®
Battery: One EN-EL15c lithium-ion battery
AC adapter: AC adapter EH-8P (sold separately); requires a USB cable (included)
Dimensions: (H × W × D) approx. 134 × 80.5 × 49 mm
Weight: approx. 630 g with battery and memory card, but without body cover and accessory shoe cover; approx. 540 g (camera body only)
Accessories included: Accessory shoe cover BS-D1 (attached to the camera on delivery), body cover BF-N1, lithium-ion battery EN-EL15c, carrying strap AN-DC26, USB cable (with Type-C connectors at both ends)
