Streaming»YOLOLIV»YOLOLIV YOLOBOX PORTABLE LIVE STREAM STUDIO»(new)

ID: 59916
  • Цвет: black
  • Для профеесионалов: yes
  • Производитель: YOLOLIV
  • Для видео: yes
  • Гарантия: 24
  • Аксессуары: yes
  • Streaming: yes
pec pasūtījuma
Количество:
Цена: 948.64 779.24 €
Клубная цена: 914.76 €




The YoloLIV YoloBox Portable Multi-Camera Live Streaming Device can simultaneously broadcast to 3 platforms. Simply connect up to 5 video sources, then connect to a local area network via Wi-Fi, Ethernet, or 4G, and set up your stream. The large touchscreen display shows the streaming image as well as the input streams; the LCD display also shows the control interface, which allows you to switch between the info sources with a touch.

The YoloBox supports input resolutions of 720p and 1080i/p, and streams at your choice of 540p, 720p, and 1080p using the H.264 codec. You can stream to YouTube via custom RTMP settings. The Yolo Box features an HDMI out, which allows you to display your stream locally on an HDMI device. It also has a line-level audio input, and a discrete headphone audio out. You can record your stream directly in the .mp4 format to an optional SD card, up to 128GB in size, using the built-in SD card slot.

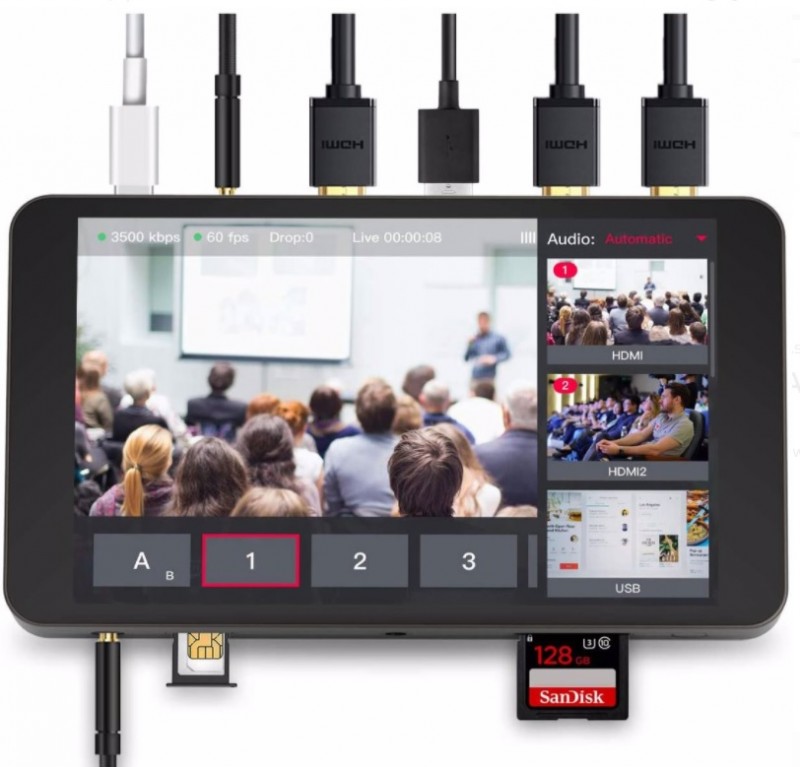

Touchscreen Control The Yolo Box provides you with a large touchscreen interface for easy streaming and control.

Functions The device works as a switcher, with a variety of picture-in-picture templates as well as graphic layers. It has a built-in encoder that allows for live streaming, and can record to optional SD cards.

Internet

You can connect to the internet using the integrated RJ45 (Ethernet) port, Wi-Fi, and via cell service using an optional SIM card.

Simultaneous Streaming

YoloBox will first push your feed to the YoloLIV platform, from where it automatically forward your feed to a maximum of 3 destinations simultaneously. Note: Please note that at times a streaming service may change their policies, which will cause issues with integration; this is usually a temporary situation.

Streaming Platforms

Major steaming platforms such as Facebook live, YouTube, and twitch as well as YoloLIV are supported. RTMP protocols allow you to stream to custom RTMP destinations including YouTube.

Input Sources

The YoloBox allows you to manage (Switch, Picture-in-picture, etc.) up to 5 inputs, including 4 from physical sources (2 HDMI, 1 USB, and 1 SD card) as well as 1 from a web source.

Battery Life

The internal battery can power your YoloBox for approximately 3 hours. The YoloBox charges via the USB connection, which is used for power only.

Functions

  • Touchscreen Control Streaming Encoder
    Simultaneous Cross-Platform Streaming
    Encoder, Monitor, Switcher, and Recorder

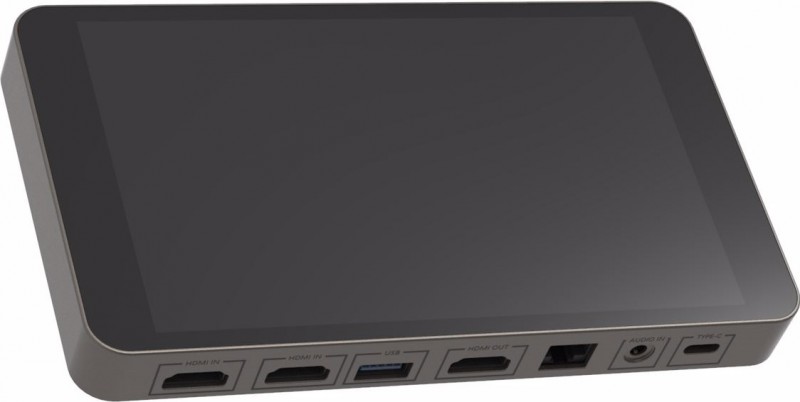

    2 x HDMI, 1 x USB In; 1 x HDMI Out
    1 x HDMI Confidence Monitor Out
    Stream via Ethernet, Wi-Fi, or LTE
    Supports 1080p and 720p Resolutions
    H.264 Streaming Format
    Connect to YouTube via Custom RTMP
    Records Internally to SD Card

Specifications

  • Dimensions: 185mm x 107mm x 19.5mm
    Weight: 480g
    Video Encoded Format: H.264
    Audio Encoded Format: AAC (48k)
    Video Recorded Format: MP4
    Audio Input Format: 32kHz, 44.1kHz, 48kHz, 16-bit
    Video Input Format: 1080i/ 720p/ 1080p
    Video Recorded Resolution Up to 1080p:60fps
    Live Broadcast Resolution: 540P/720P/1080P
    Storage Card Type: SD Card
    Storage Card Capacity Expanded to 128G
    Network Connection WiFi:2.4G/5G, Support 802.11a/b/g/n/ac
    4G Network:LTE-FDD B2/4/5/7/12/13/17/25/26,LTE-TDD B41
    SIM Card Size:Standard SIM Card
    Power Interface: Type C, Quick Charge 3.0
    Battery Capacity: 3.7V/5700mAh
    Network Protocol: RTMP
    Operating Temperature: -10℃-40℃
    Storage Temperature: 5℃-40℃




*INCLUDED IN BOX**

1x YoloBox Studio
1x Power Adapter
1x USB Charge Cable
2x Type A HDMI Cable
1x Hotshoe Mount
1x Storage Bag
1x YoloBox User Manual
1x SIM Card Eject Pin
